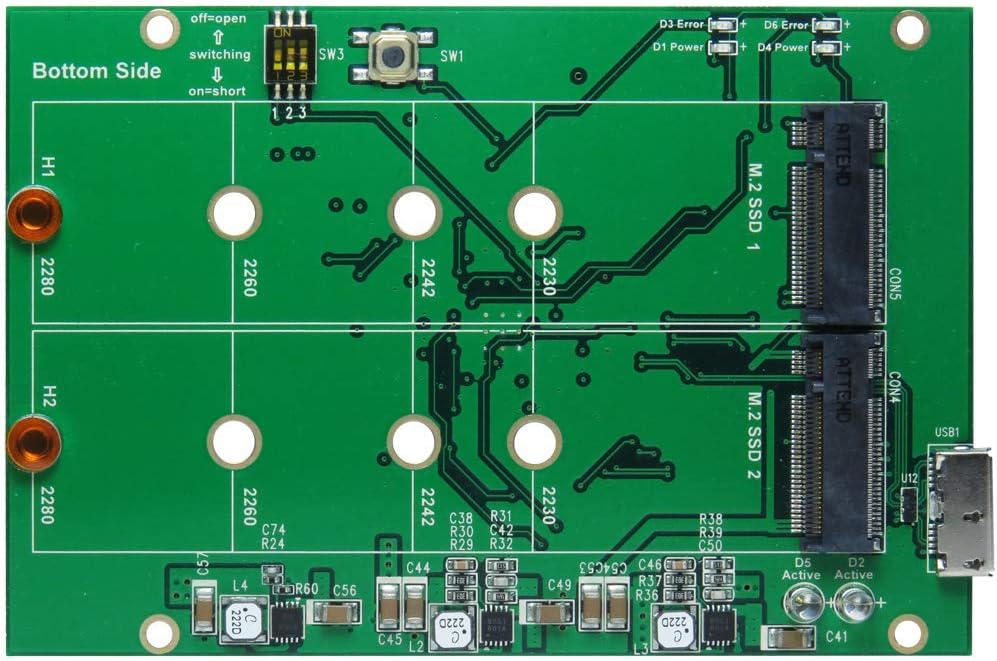

USB 3.1 Micro B to M.2 B Key X2 Raid Card

USB 3.1 Micro B to M.2 B Key X2 Raid Card Features Built in ASM1352R USB3.1 / 10Gbps High performance processorBuilt in M.2 NGFF B-Key Female connector X2Provides independent Power for the M.2 SSDEach Port M.2 Port supports PWM synchronous Power IC3A maximum output currentShort circuit protectionIn-rush current suppressionThermal shutdown protectionESD HBM (Human Body Mode)/2KVD2 ,D5 Green LED Blinking indicates M.2 SSD Active status Specification Compliant with USB 3.1 Specification Revision 1.0Supports UASP and Mass Storage Class Overview Rev1.4Supports SATA Revision 3.2Compliant with PCI Express Specification version 1.0 Supports M.2 Form Factor Type 2230-D2-B-M : 30mm(L) X 22mm(W)Type 2242-D2-B-M : 42mm(L) X 22mm(W)Type 2260-D2-B-M : 60mm(L) X 22mm(W)Type 2280-D2-B-M : 80mm(L) X 22mm(W) Micro SATA Cables PN # M2-1250-HSRD

• USB 3.1 Micro B: This is a type of USB connector that supports the USB 3.1 standard, allowing high-speed data transfer rates (up to 10 Gbps). The Micro B connector is smaller, often used for portable devices, and allows backward compatibility with USB 2.0
• M.2 B Key: M.2 is a specification for internal expansion cards, particularly for SSDs (solid-state drives). The "B Key" indicates the specific type of connector on the M.2 card, which defines the pin layout and capabilities.
• X2 RAID Card: This refers to a card capable of using two M.2 drives in a RAID (Redundant Array of Independent Disks) configuration
• Such an adapter would be useful for connecting multiple M.2 drives externally through a USB 3.1 Micro B port, possibly for data recovery, storage expansion, or high-speed external RAID storage solutions.
• Micro SATA Cables PN# M2-1250-HSRD
