TEN-HIGH 90 Degree Right Angle Planetary Reducer,Reduction Ratio 3:1, 2Pcs Gearbox for Nema17 or 100W Servo Stepper(Model: ZPF42L1)
Product details
| Management number | 230044244 | Release Date | 2026/05/31 | List Price | US$570.95 | Model Number | 230044244 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

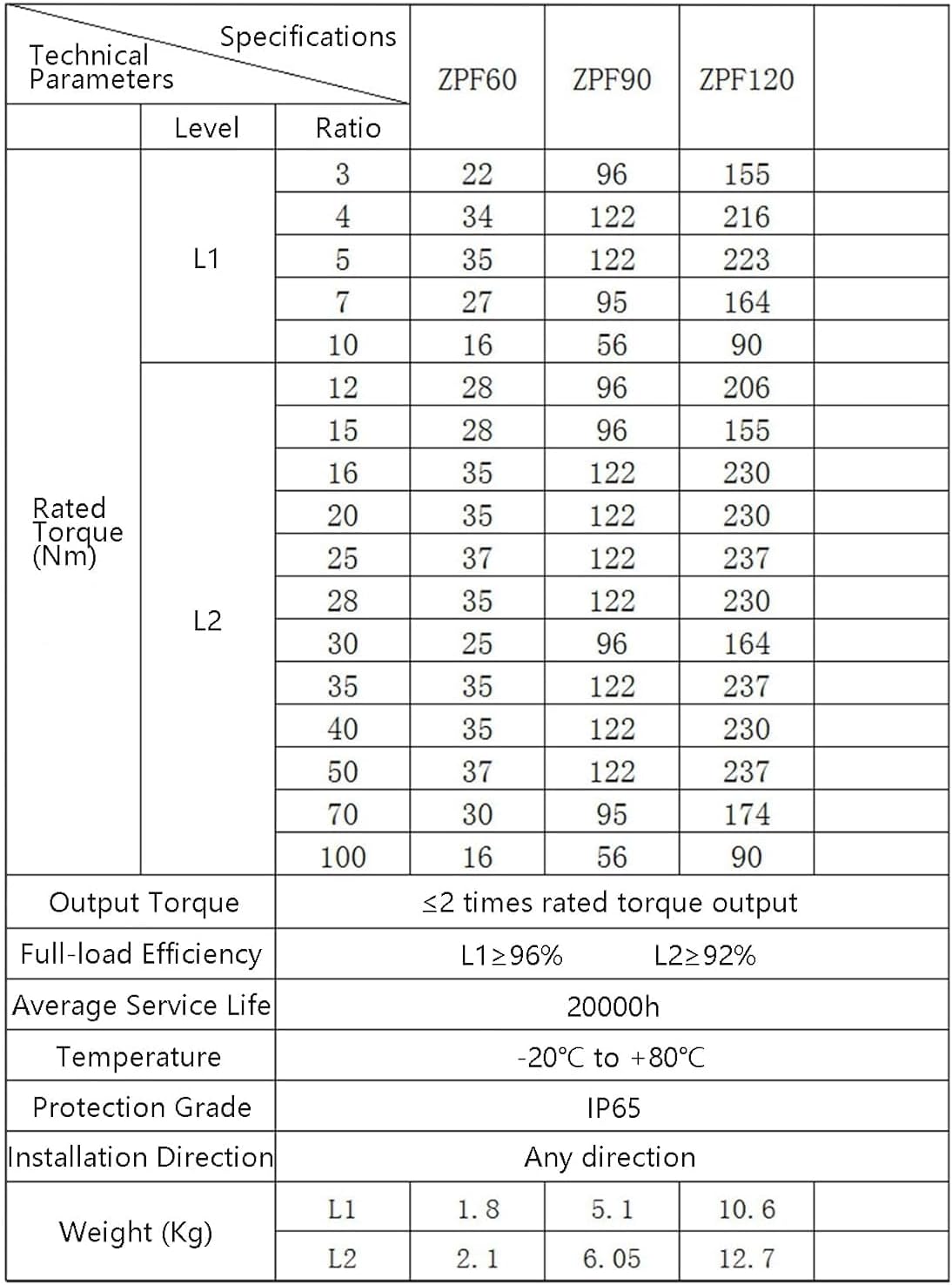

- Planetary Reducer: Reducer Ratio: 3:1; Frame Size: 76x55 mm; Suitable motor: fit for 40/42 Stepper Motor, 50/100W/42 Servo Motor; Rated Input Speed: 3000rpm; Maximum Radial Force: 680N; Maximum Axial Force: 340N; Rated Permissible Torque: 12N.m
- Backlash Precision: ≤ 6 Arcmin ; Full load efficiency: ≥ 96% ; Protection class: IP65; Average Life Span: 20000h; The right angle planetary gear achieve precise meshing and improve accuracy;With special lubricating grease, non curing, durable and long-lasting
- High Precision Gear: The gear material is 20CrMnTi steel, which undergoes high-frequency quenching and is precision rolled twice by an imported rolling machine. The surface grinding accuracy reaches level 7,with high hardness,wear resistance,no tooth chips,and is not a powder metallurgy die-casting gear
- High quality materials: Adopts integral gear ring, forged and tempered with 40Cr material,and appearance nickel plated with anti-oxidation treatment;The bearings adopts deep groove ball bearings, RS2 grade rubber cover seals and TC skeleton oil seals
- Applications: This precision right angle reducer has higher torsion and precision than ordinary planetary reducers on the market, and is suitable for various small and medium-sized automation equipment and instruments, medical equipment, robots, AGV industry, channel gates, printing, packaging and other industries
