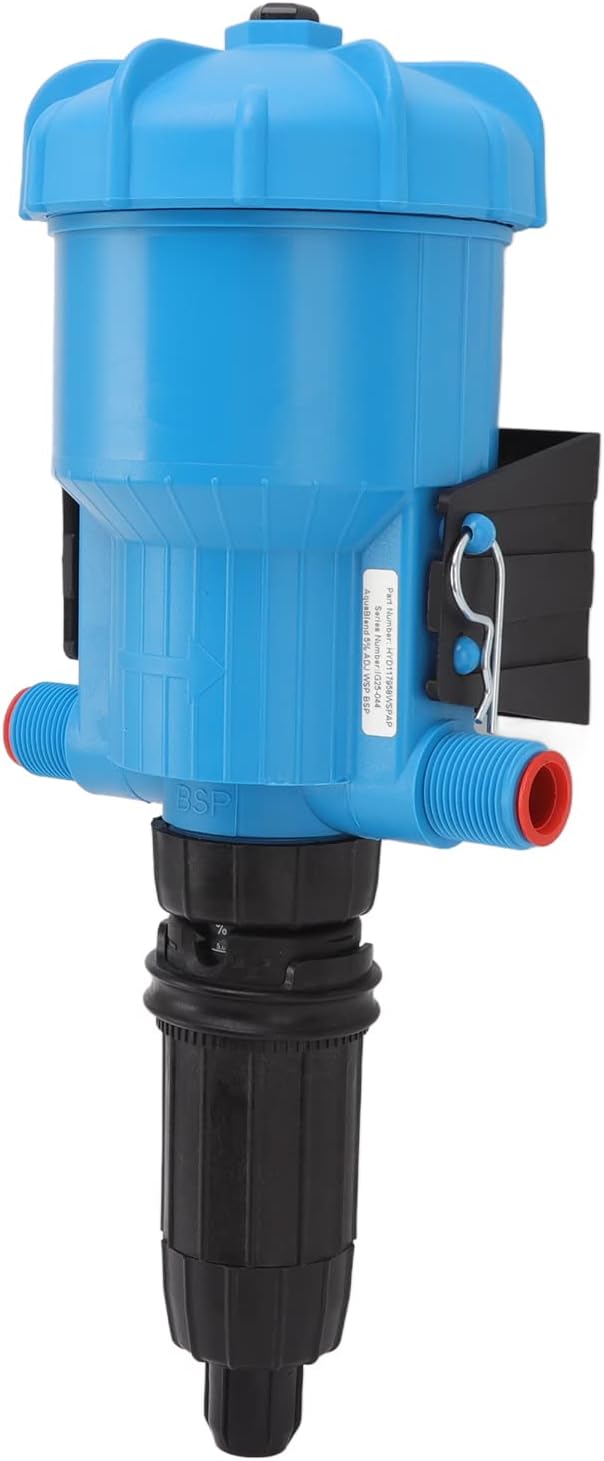

Pilipane 0.78‑5% G3/4 Male Thread Automatic Proportioner Dosing Device Pump Farming Chemical Fertilizer Injector Dispenser

Item Type: Chemical DoserMaterial: PPWeight: Approx.2109g/74.39ozSize: Height: 36.5cm/14.37inBottom Diameter: 13cm/5.12inInlet and Outlet Distance: 16cm/6.30inSpecification: 0.78-5% (1:128-1:20)Interface Size: Male Thread G3/4 Flow Rate: 0.04-11gpm(10-2500l/h)Working Pressure: 5-90psi(0.3-6.2bar)Working Temperature: 1-38℃Main Application Areas:1.Horticultural Industry: fertilization, storage and control of flowers, fruits, vegetables, etc.2. Farming: fixed proportion of health care for live and poultry such as chickens, ducks, cattle and pigs.3.Industrial Field: water treatment, chemical industry, metal processing, fire fighting, etc.4.Constant ratio dilution of special solvents such as deodorizing solvents, cooling solvents, lubricating solvents, etc.5.Car wash industry, printing industry, hospital, wine industry, food processing, pipe and tank cleaning, agricultural irrigation, equipment maintenance, gardening and other industries.Application of Dosing Devices:1. The variety and dosage of drugs can be changed at any time.2. It is convenient and quick to add in emergency.3. Customers can prepare their own cleaning solution and add cleaning solution in the cleaning channel to clean the drinking water and live water lines.4. It can be used to solve the problem of sedimentation and pollution in the water storage tank.5. It can be used in automatic spraying system for replacing the water tank on the cleaner.6. It can be used for water line and tank cleaning, water network cleaning, odor treatment, equipment, maintenance, conveyor belt cleaning, live drinking water treatment, acidification treatment.Package List：1 x Doser with Bracket Installed2 x English Instruction Manual1 x Transparent Tube with Filter1 x WasherNote:When the water passes through the dosing device, the motor will move up

• Lock Ring: The ratio adjustment is designed with a locking ring to firmly lock the specific ratio range. The locking ring can be fixed by pushing and pulling up and down.
• Automatic Dosing: The accurate automatic dosing ratio is not affected by the fluctuation of waterflow pressure. The amount of solution injected is proportional to the amount of water flowing into the pipeline, and external adjustment is flexible and convenient.
• Durable and Long Lasting: The shell is made of premium PP material, with wear proof, anti characteristics. It can be long used without aging.
• Proof: The pump body adopts proof design to ensure the feasibility of the solution and avoid erosion of the pump body due to the solution, thus long service life.
• Water Powered: It is installed directly on the water supply pipe. Water pressure works as power, no need for electricity or motor start.
